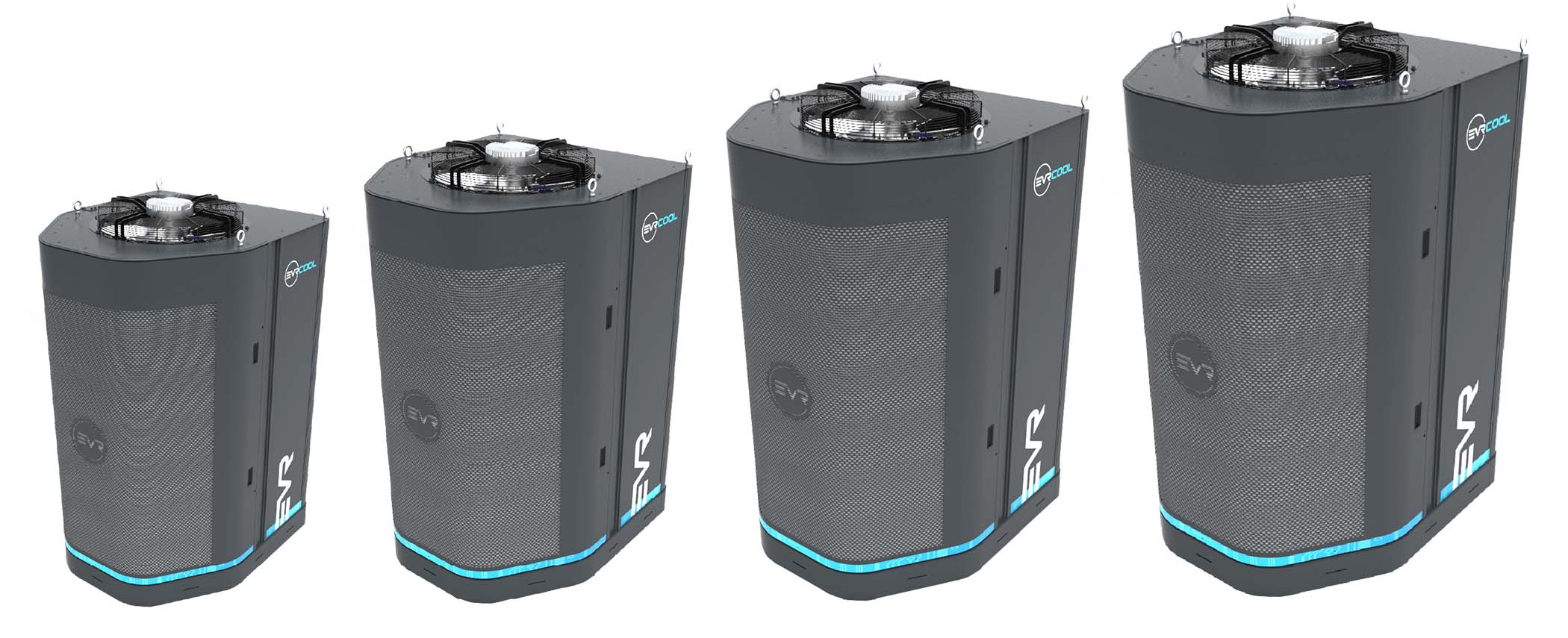

The EVRCOOL Product Line
sample Orders 3/25
Production Orders 6/25

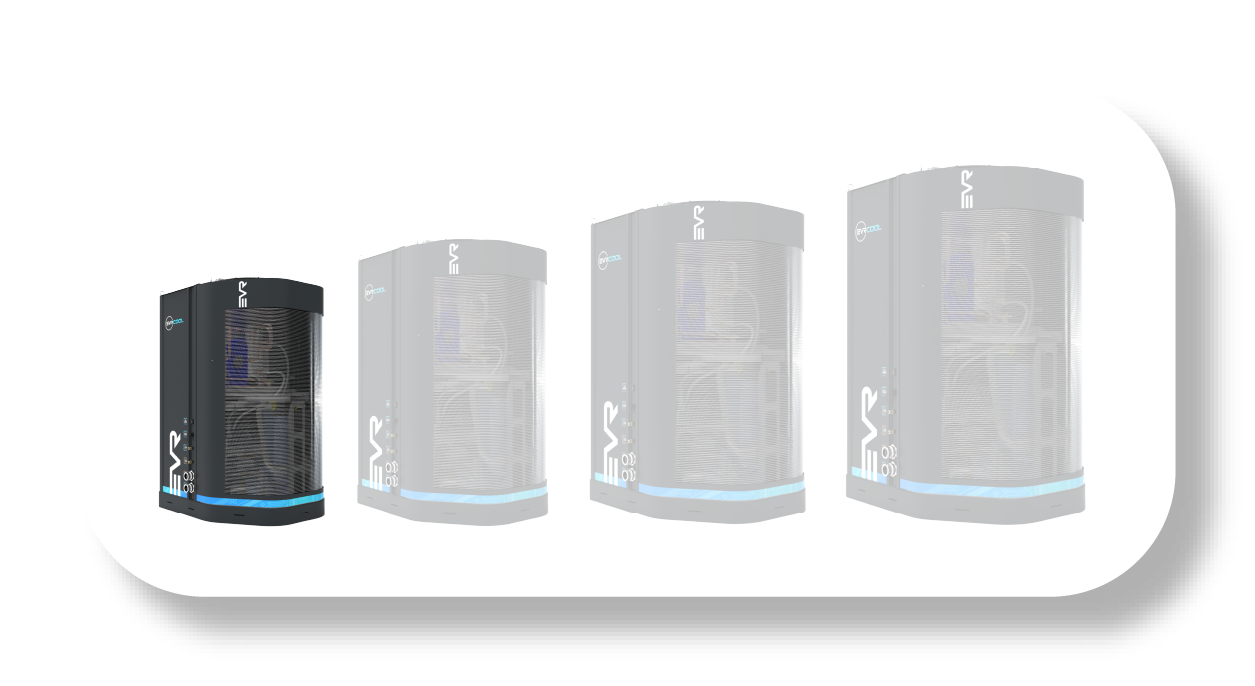

10kW (3.5 Ton)
Fan: 350mm Variable Speed
Pump: Variable Speed
Variants:
1Ckt 220V 1 Phase
1Ckt 208-230V 3 Phase
1Ckt 380-480V 3 Phase
2Ckt 208-230V 3 Phase
2Ckt 380-480V 3 Phase

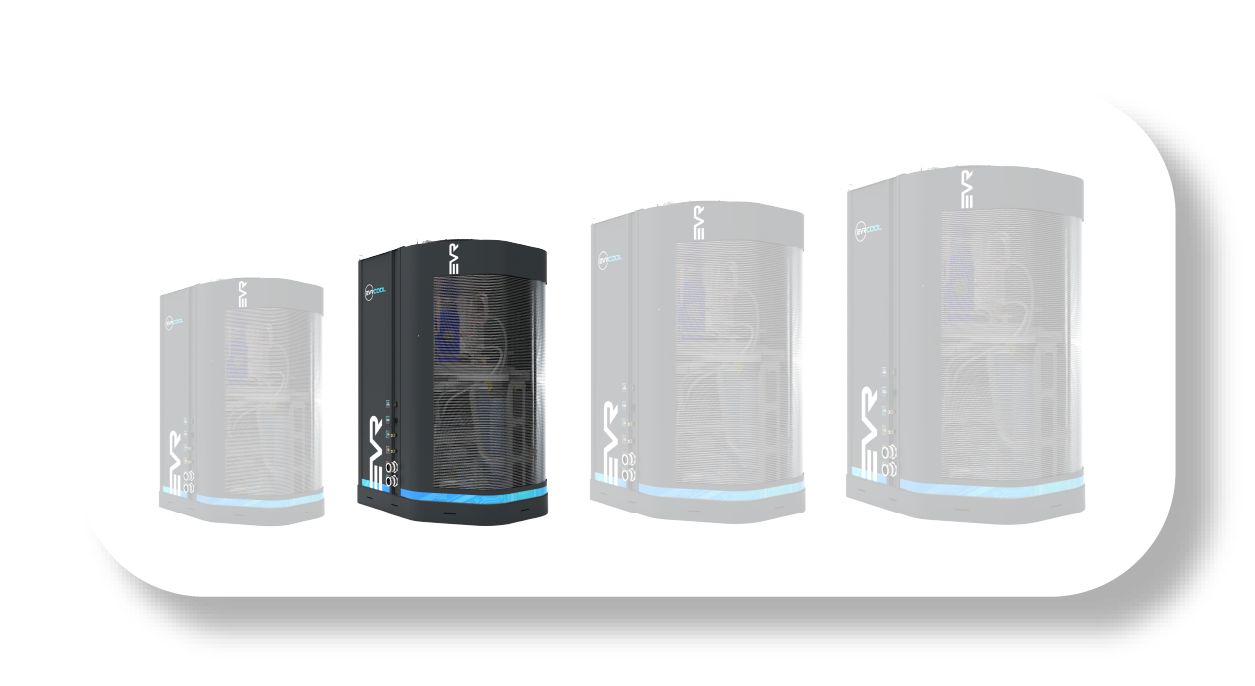

25kW (7 Ton)
Fan: 500mm Variable Speed
Pump: Variable Speed
Variants:
1Ckt 208-230V 3 Phase
1Ckt 380-480V 3 Phase
2Ckt 208-230V 3 Phase
2Ckt 380-480V 3 Phase
sample Orders 12/24
Production Orders 3/25
sample Orders now
Production Orders 12/24
50kW (14 Ton)
Fan: 630mm Variable Speed
Pump: Variable Speed
Variants:
1Ckt 208-230V 3 Phase
1Ckt 380-480V 3 Phase
2Ckt 208-230V 3 Phase
2Ckt 380-480V 3 Phase

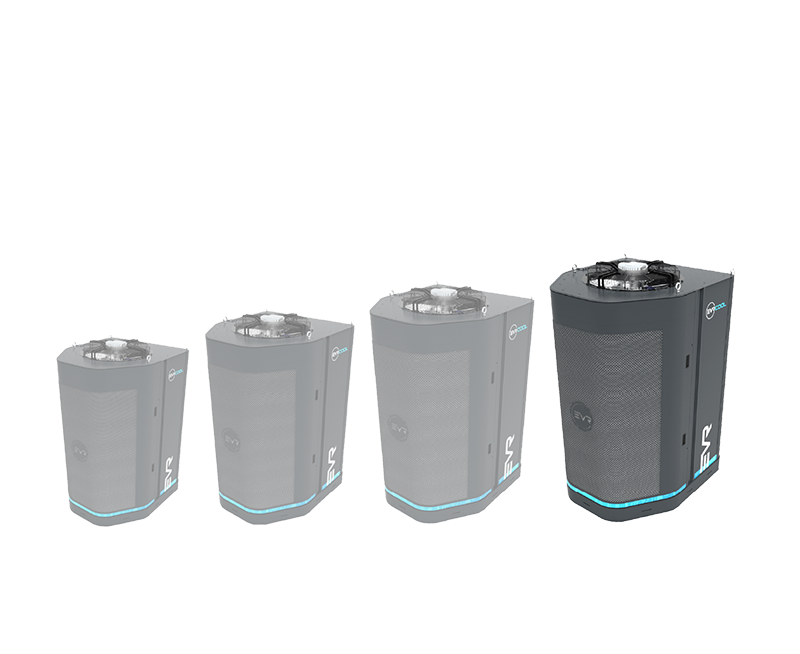

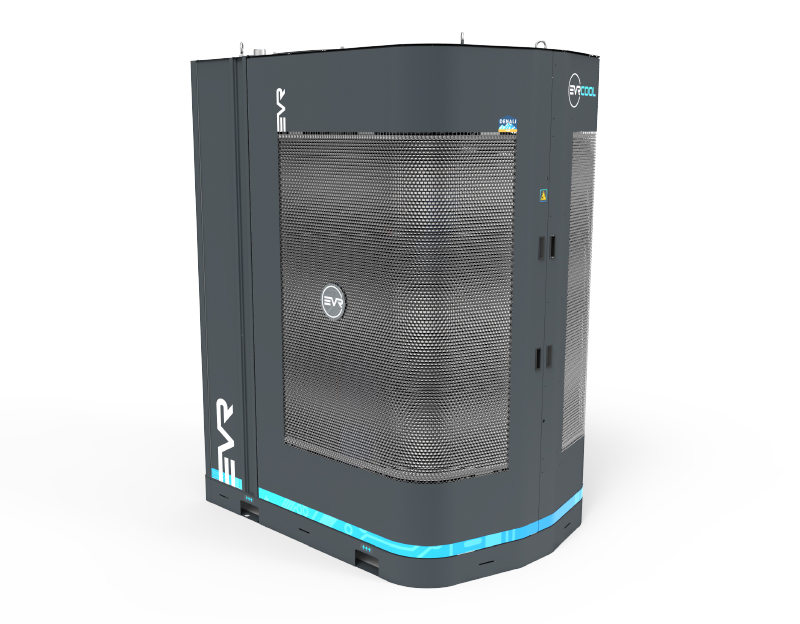

100kW (28 Ton)
Fan: 900mm Variable Speed
Pump: Variable Speed
Variants:
1Ckt 208-230V 3 Phase
1Ckt 380-480V 3 Phase
2Ckt 208-230V 3 Phase
2Ckt 380-480V 3 Phase
sample Orders 6/25
Production Orders 9/25
.png)
EVRCOOL Chiller Features
Standard
Indoor/Outdoor Rated
Variable Speed Pump
Variable Speed Condenser Fan
Motorized Hot Gas for Precise Temperature Control (±1°F)Low GWP R454b Refrigerant
EVRCOOL Patent Pending Curved Condenser Door for Serviceability
Removable Refrigeration Skid
External Tank Fill Port
Pre-bent Stainless Hydraulic Plumbing
EVRCOOL I/O PCB & Wire Harnesses
External Interlock and Ethernet Connectors
Standby Mode with Temp Control
Remote Connectivity & Monitoring via Ethernet
Optional
2nd Hydraulic circuit with independent flow & temperature control
Active DI water control
Anti-Backflow Kit
Auto Tank Make-up
Tank Heater
Standby Mode with DI Control
Camlock, Male NPT, or Female NPT Fluid Connections
Customer Specific Color Schemes & Branding (For OEM’s)
